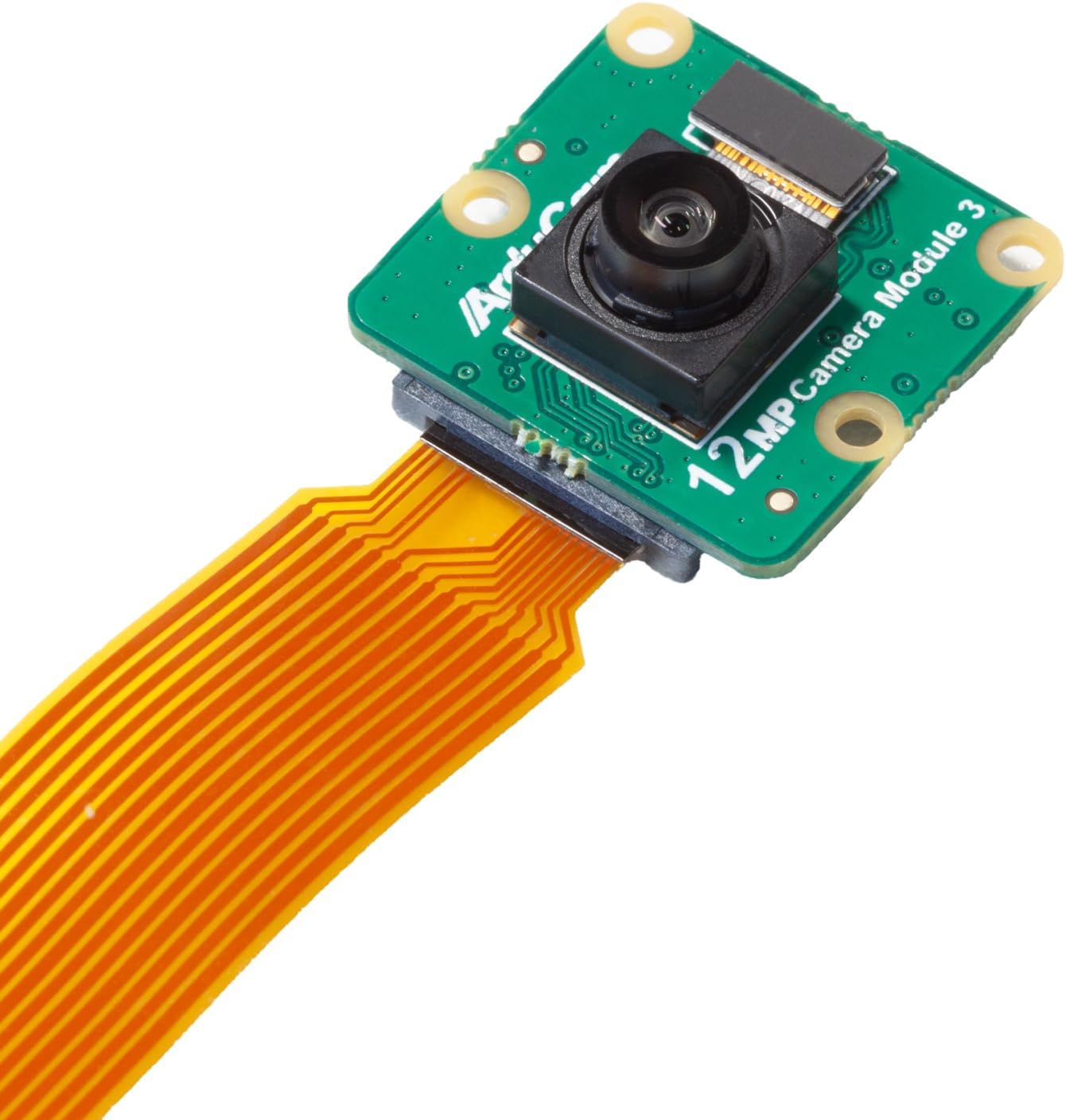

Arducam for Raspberry Pi Camera Module 3, 12MP IMX708 102°(H) Wide Angle Fixed Focus HDR Camera for Raspberry Pi 5, 4/4B, 3/2/Zero W

     Product Description











                                                                 <img alt="Arducam for Raspberry Pi Camera Module 3" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-base a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357666_697_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg"><img alt="Arducam for Raspberry Pi Camera Module 3" src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357666_697_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg">                                                                      <p class="a-spacing-base"> </p>This wide-angle Fixed Focus camera is designed by Arducam, which is based on the Official Wide-Angle Camera Module 3. This Arducam for Raspberry Pi camera module 3 also adopts the 11.9MP IMX708 Image Sensor which can be used to take full HD video as well as still photographs and features an HDR mode of up to 3 megapixels.It is also equipped with a 102 Degree Wide-Angle Fixed Focus Lens and integrated IR-cut filter which is more stable and fast when focusing compared with the Autofocus Lens, especially for the wide range projects. How to use it:      <p class="a-spacing-base"> For Raspberry Pi Bookworm users running on Pi 5, please do the following: </p>     <p class="a-spacing-base"> sudo nano /boot/firmware/config.txt </p>     <p class="a-spacing-base"> #Find the line: camera_auto_detect=1, update it to: </p>     <p class="a-spacing-base"> camera_auto_detect=0 </p>     <p class="a-spacing-base"> #Find the line: [all], add the following item under it: </p>     <p class="a-spacing-base"> dtoverlay=imx708 </p>     <p class="a-spacing-base"> #Save and reboot. </p>     <p class="a-spacing-base"> If you want to enable the camera kit on the cam0 port of Pi5, the difference from that used on cam1 is that the dtoverlay should be replaced with </p>     <p class="a-spacing-base"> dtoverlay=imx708,cam0 </p>     <p class="a-spacing-base"> For other Raspberry Pi boards and the OSs they run, please refer to the manual the product comes with. </p>






        <p class="apm-text-center">
                                          <img alt="Arducam for Raspberry Pi Camera Module 3" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357666_882_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg"><img alt="Arducam for Raspberry Pi Camera Module 3" src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357666_882_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg">   </p>


        <p class="apm-text-center">
                                          <img alt="Arducam for Raspberry Pi Camera Module 3" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357666_787_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg"><img alt="Arducam for Raspberry Pi Camera Module 3" src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357666_787_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg">   </p>


        <p class="apm-text-center">
                                          <img alt="Arducam for Raspberry Pi Camera Module 3" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357667_32_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg"><img alt="Arducam for Raspberry Pi Camera Module 3" src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357667_32_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg">   </p>







                                                                                                                                                                                                                                 <h3 class="a-size-extra-large a-spacing-base a-text-center"> Specifications </h3>                                                        IMAGE SENSOR                                     IMX708                                        Still Resolution                                     11.9 Megapixels                                        Video Modes                                     2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120                                        Sensor Resolution                                     4608 x 2592 pixels                                        Sensor image area                                     6.45 x 3.63mm (7.4mm diagonal)                                                         Pixel Size                                     1.4μm × 1.4μm                                        Optical Size                                     1/2.43"                                        IR Sensitivity                                     Integral IR-cut Filter, visible light only                                        Supported Platform                                     Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W


                                                                                                                                                               <h3 class="a-size-extra-large a-spacing-base a-text-center"> Lens </h3>                                                        FOCUS TYPE                                     FIXED FOCUS                                        Focal Length                                     2.75mm                                        F.NO                                     F2.2                                                         Field of View(FOV)                                     120°(D)x102°(H)x67°(V)                                        Default Focus Distance                                     1.5m -∞





                                      <img alt="Arducam for Raspberry Pi Camera Module 3" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357667_217_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg"><img alt="Arducam for Raspberry Pi Camera Module 3" src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357667_217_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg">








                                                                 <img alt="Arducam for Raspberry Pi Camera Module 3" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-base a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357667_947_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg"><img alt="Arducam for Raspberry Pi Camera Module 3" src="https://www.beingshivam.com/wp-content/uploads/2025/01/1738357667_947_Arducam-for-Raspberry-Pi-Camera-Module-3-12MP-IMX708-102°H.jpg">                                          <h3 class="a-spacing-mini"> Applications </h3>                                    <p class="a-spacing-base"> </p>Wildlife PhotographMachine LearningHigh-Quality MonitorAI applicationsWide-Range Project

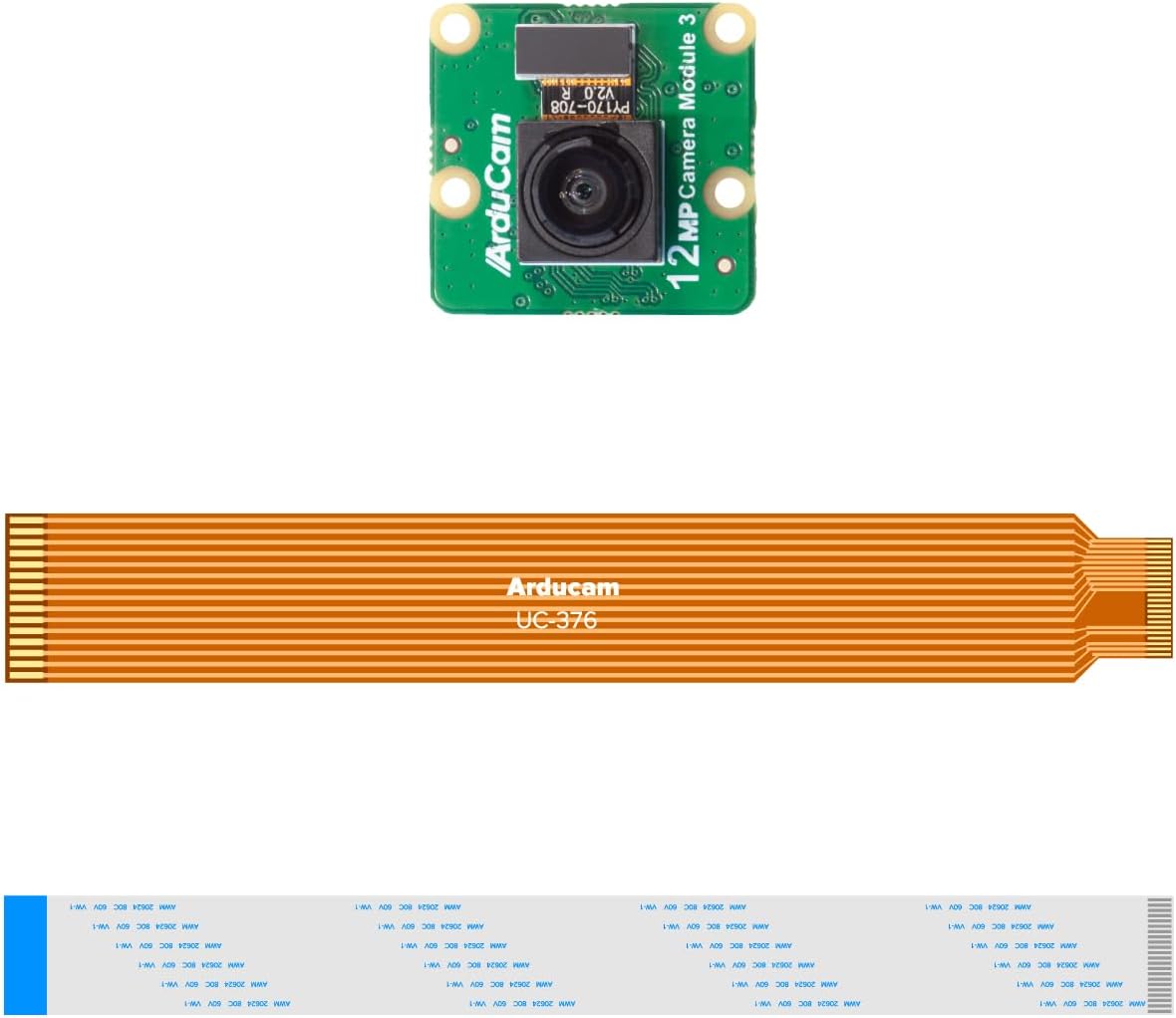

               <br>Superior Sensor: This Raspberry Pi camera module 3 adopts IMX708 back-illuminated stacked CMOS with 3MP HDR output capability.<br>Wide Angle: This is a wide angle camera that is equipped with a 102°(HFOV)Lens.<br>Fixed Focus: As an IMX708 camera, different from the official one, this V3 camera has a Fixed focus lens, which can be a choice for customers who need it.<br>Wide Compatibility: This RPI camera is compatible with all Raspberry Pi boards, including Raspberry Pi5, pi4/4b,3/2/Zero W, and so on.<br>Package includes: IMX708 camera module v3, 1x 15-22pin&22-22pin FPC cable for Raspberry Pi.
